This specification is applied to Rechargeable LFP Power Battery with aluminum shell manufactured by EVE Energy Co., Ltd., in which the description and model, main performance, test conditions and precautions of the product are included.
The product can be applied for Vehicle power supply, Storage system, etc.
LFP Li-ion Power Battery with aluminum shell.
1.General Technical Parameter For EVE 230Ah
| No. | Item | Parameter | Remark | |
| 1 | Typical Capacity | 230Ah | (25±2)℃，Standard charge and discharge | |
| 2 | Typical Voltage | 3.2V | ||
| 3 | AC Impedance Resistance | ≤0.30mΩ | ||
| 4 | Standard charge and discharge | Charge/DischargeCurrent | 0.5C/0.5C | (25±2)℃ |
| Charge/DischargeCut-off Voltage | 3.65V/2.5V | |||
| 5 | Max Charge/Discharge Current | ContinuousCharge/Discharge Current | 1C/1C | Reference Continuous/Pulse Charge/Discharge Current Map |
| PulseCharge/Discharge Ccurrent（30s） | 2C/2C | |||
| 6 | Recommended SOC window | 10%～90% | N.A. | |
| 7 | Charging Working Temperature | 0℃～60℃ | Reference Continuous/Pulse Charge/Discharge Current Map | |
| 8 | Discharging Working Temperature | -30℃～60℃ | ||
| 9 | StorageTemperature | Short Term(Within aMonth) | -20℃～45℃ | N.A. |
| Long Term(Within aYear) | 0℃～35℃ | ||||
| 10 | Storage Humidity | ＜95% | |||
| 11 | Monthly Self-discharge Rate | ≤3%/M | (25±2)℃，Storage SOC 30%～50%SOC | ||
| 12 | Dimension | Width | 173.93±0.5mm | Reference Appendix I | |
| 13 | Thickness(300±20kgf， 40%SOC) | 53.85±0.4mm | |||
| 14 | High(total) | 207.3±0.5mm | |||
| 15 | High(subject) | 204.6±0.5mm | |||
| 16 | Tab Distance | 123.0±0.3mm | |||
| 17 | Weight | 4.11±0.1kg | |||
2.EVE 230ah Cell Dimensions

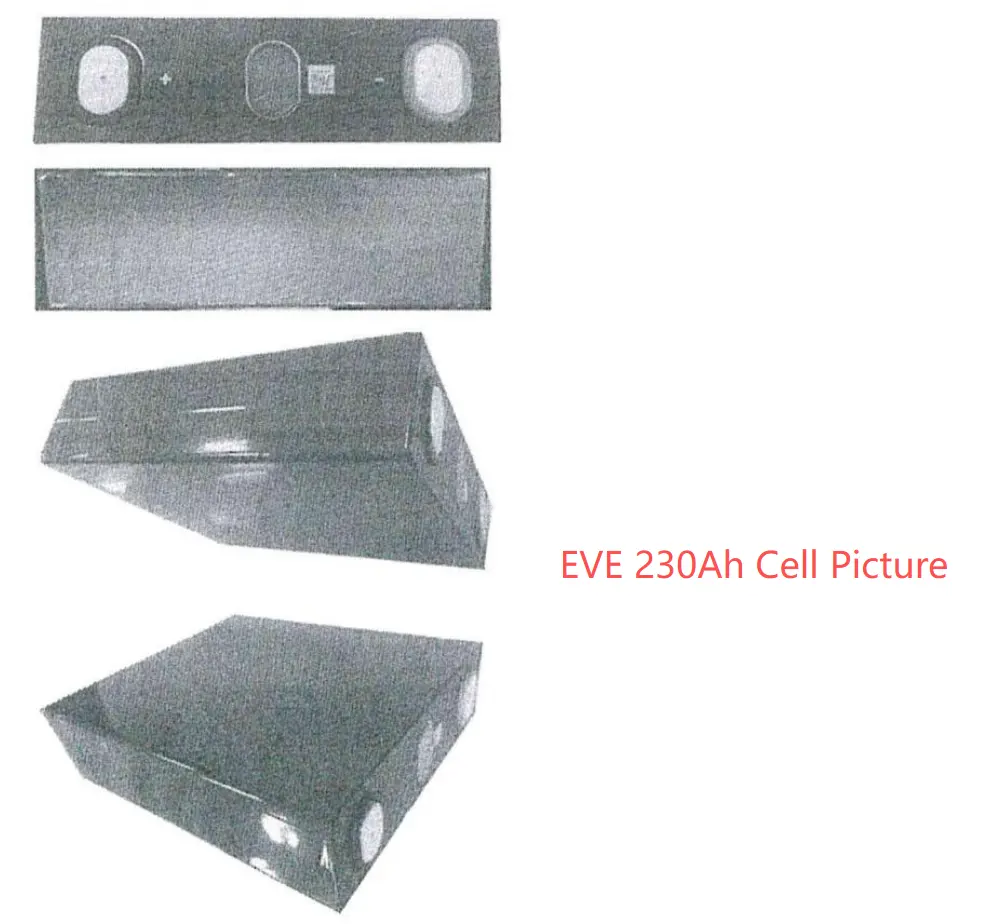

3.Appearance picture for EVE 230ah Battery Cell

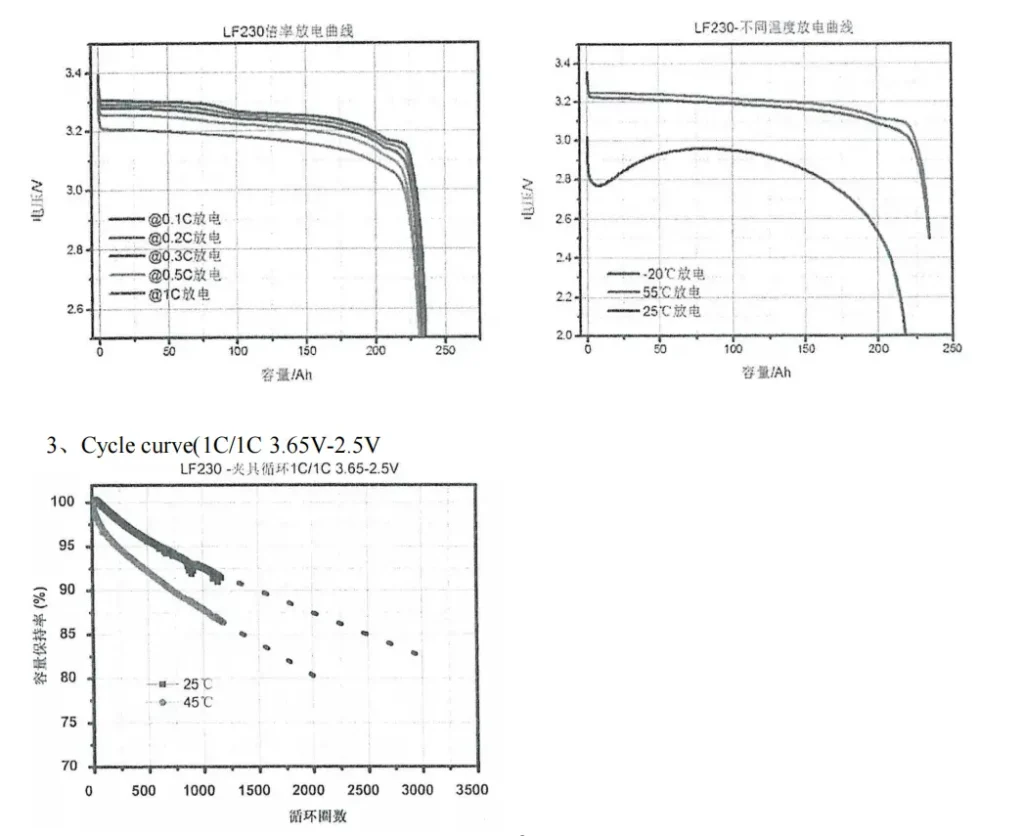

4. Charging and Discharging Curve for EVE 230Ah Cell
5.Download EVE 230ah cell datasheet
