eve 304ah lifepo4 datasheet

Last post I introduce the EVE 280Ah battery cell datasheet, now I again show you the eve 304ah lifepo4 datasheet.

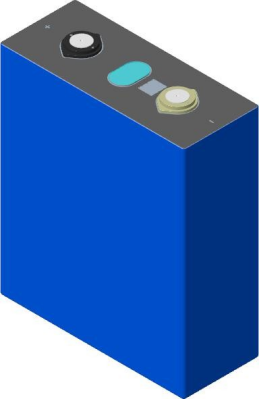

LFP Li-ion Power Battery with aluminum shell,this EVE battery cell can be applied for Vehicle power supply, Storage system, etc.

1.EVE 3.2V 304Ah cell parameters

No.	Item		Parameter	Remark
1	Typical Capacity		304Ah	(25±2)℃，Standard charge and discharge
2	Typical Voltage		3.2V
3	AC Impedance Resistance		≤0.5mΩ
4	Standard charge and discharge	Charge/DischargeCurrent	0.5C/0.5C	(25±2)℃
		Charge/DischargeCut-off Voltage	3.65V/2.5V
5	Max    Charge/Discharge Current	Continuous Charge/DischargeCurrent	250A	Reference Continuous/Pulse Charge/Discharge Current Map
		PulseCharge/Discharge Ccurrent（30s）	2C/2C
6	Recommended SOC window		10%～90%	N.A.
7	Charging Working Temperature		0℃～60℃	Reference Continuous/Pulse Charge/Discharge Current Map
8	Discharging Working Temperature		-30℃～60℃
9	StorageTemperature	Short Term(Within aMonth)	-20℃～45℃	N.A.

			Long Term(Within aYear)	0℃～35℃
10	Storage Humidity			＜95%
11	Monthly Self-discharge Rate			≤3%/M	(25±2)℃，Storage SOC30%～50%SOC
12	Dimension	Width		173.5±1mm	Reference Appendix I
13		Thickness(300±20kgf， 40%SOC)		72.0±1mm
14		High(total)		208.8±1mm
15		High(subject)		204.4±1mm
16		Tab Distance		90.0±0.3mm
17	Weight			5.49±0.3kg

2.Electrical performance for EVE 304Ah cell

No.	Item	Requipments	Measuring Procedure
1	C-Rate DisCharge Performance at 25℃	Discharge Capacity/ Typical Capacity×100% A） 0.5C(A)≥100% B）1.0C(A)≥100%	After standard charge and 1h  rest, discharge to 2.5V cutoff with the current of 0.33C(A), 0.5C(A), 1C(A) respectively. Repeating 3 times, if the capacity is not qualified.
2	Discharge performance at different temperatures	Discharge Capacity/ Typical Capacity×100%A) 55℃时≥95%B) -20℃时≥70%	After standard charge and 5h rest at 55±2℃, discharge to 2.5V cutoff with the current of 1.0C(A)；After standard charge and 24h rest at-20±2℃, discharge to 2.0V cutoff with the current of 1.0C(A)；
3	Charge Retention and Recovery at 25℃	Remaining Capacity ≥ Typical Capacity ×95% Recovery Capacity≥Typical Capacity ×97%	After standard charge and open the circuit for 28 days at 25 ℃ , discharge to 2.5V cutoff with the current of 1.0C(A),  recorded as remaining capacity ； After standard charged and 30mins rest, discharge current 1.0CA with 2.5V cut-off at (25 ± 2) ℃ ， recorded as RecoveryCapacity.
			At 25 ± 2 ℃ ， the battery under 300kgf
			fixture ： charging the cell with charge
4	Cycle Life at 25℃	≥3500 cycles @1C/1C	current 1.0C(A) and constant voltage 3.65V,0.05C cut off,rest for 30min,discharge to 2.5V cut off with the current of 1.0C(A),rest for 30min,and then start the next cycle,end with the capacity decrease to 80% of the initial capacity.The number of cycles is defined as the cycle lifeof the battery
			At 45 ± 2 ℃ ， the battery under 300kgf
			fixture ： charging the cell with charge
5	Cycle Life at 45℃	≥1800 cycles @1C/1C	current 1.0C(A) and constant voltage 3.65V,0.05C cut off,rest for 30min,discharge to 2.5V cut off with the current of 1.0C(A),rest for 30min,and thenstart  the  next  cycle,end  with  the capacity

			decrease to 80% of the initial capacity.The number of cycles is defined as the cycle life of the battery
6	End of Life Management	Capacity/Typical Capacity＜70%	During the use of the battery, when the endof life is exceeded, should stop use the battery.

3.Free download EVE 304Ah battery cell datasheet
